Name: 380W Bsw Moving Head Light 3-in-1
Brand: Guangzhou Union Bright Lighting Co., Ltd.
SKU: B024
Price: 10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Union Bright

Certification: CCC, CE, ROHS

Model Number: B024

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: 10 $/pcs

Packaging Details: Carton

Delivery Time: 5-8 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1000pcs/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                380W moving head light 3-in-1, BSW moving head light with warranty, beam moving head light 380W


Voltage:	AC 110V/220V. 60HZ/50HZ	Power Conpustion:	130w
Size:	484673CM	G.W:	25 Kg

Voltage:	AC 110V/220V. 60HZ/50HZ
Power Conpustion:	130w
Size:	484673CM
G.W:	25 Kg

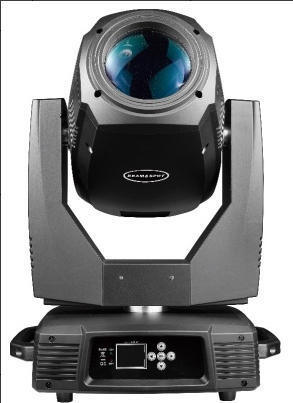

380W Bsw Moving Head Light 3-in-1

380W BSW Moving Head Light - 3-in-1 Professional Lighting System

Advanced 3-in-1 moving head light featuring 380W Phoenix light source with comprehensive color, pattern, and prism capabilities for professional stage and event lighting applications.

Technical Specifications

Power Supply	AC110-240V, 50/60Hz, 600W
Light Source	Phoenix 350W
Dimming	0-100% linear adjustment
Strobe	Dual chip strobe (0.5-9 times/second)
Focusing & Zoom	Linear focusing with linear zoom capability
Beam Angle	2-38 degrees
Optical Lens	High-precision laminated optical lens combination

Color & Pattern Features

Color System: 1 fixed color palette with 13 colors + white light, rainbow effect with adjustable speed, half step color effect
Fixed Patterns: 1 fixed pattern disc with 14 patterns + white light, capable of bidirectional variable speed rotation
Rotating Patterns: 1 rotating pattern disc with 9 replaceable pattern discs + white light, patterns flow back and forth from slow to fast
Pattern Enhancement: Automatic soft light plate activation when pattern is printed on rotating disc for more uniform light spots

Optical Effects & Movement

Prism System: Any two prism effects can be stacked and combined to create dynamic prism effects, with bidirectional rotation for effect switching
Motor System: XY axis motor with ultra-quiet, ultra-high speed three-phase motor technology
Total Motors: 16 motors throughout the entire unit
Horizontal Scanning: 540 degrees (160 bit precision scanning) with electronic error correction
Vertical Scanning: 270 degrees (160 bit precision scanning) with electronic error correction

Control & Operation

Channel Mode: 20 international standard DMX512 channels with master-slave mode operation
Display: Color key display screen for easy operation and monitoring
Rectifier Technology: Electronic rectifiers for lighter weight, brighter output, more stable bulb operation, and enhanced energy efficiency
