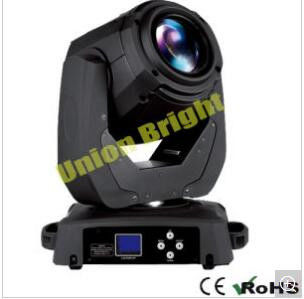

2R 120w Led Moving Head Lamp 16 Prism Led Moving Head Stage Light

Name: 2R 120w Led Moving Head Lamp 16 Prism Led Moving Head Stage Light
Brand: Union Bright
SKU: B017
Price: 200 USD
Availability: InStock
Rating: 4.9 (128 reviews)

Product Details:

Place of Origin:	China , Guangzhou
Brand Name:	Union Bright
Certification:	CCC， CE， ROHS
Model Number:	B017

Payment & Shipping Terms:

Minimum Order Quantity:	2 pcs
Price:	200$/pcs
Packaging Details:	Carton / Flight Case Package
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

Detailed Product Description

Color Temperature:	6500	Lamp Liminous:	18000
Dimming:	0-100 Liner Dimming	CRI:	96
Power Consumption:	120w	Control Mode:	DMX 512,Master/Slave, Music , Auto
Net Weight:	9.5 Kg	Gross Weight:	12kg
Prism:	8/16/24/8+16/8+16+24
High Light:	2R 120w Led Moving Head , 2R 120w Moving Head Lamp , Moving Head Lamp 16 Prism

2R Moving Head 16 Prism Beam Stage Light

16 Prism Effect
Beam Effect

Input voltage: 110V / 240V AC, 50/60Hz;
Machine Power: 150W;
Light source: Osram 2r 120W (Philips 2r 120W);
Color temperature: 8, 000 K;
Average life: 2, 000 h;
Color system: One color wheel with 13 colors; Single rotation rainbow effect;
Gobo system: One Gobo wheel with 14 gobos and high speed shake effect;
Optics: 3-Layer HD Optics Glass Lens, Optical Focus, 70, 000 Lumens at 10 meters (33 feet);
Strobe: Mechanical shutter (1-13 times / s) and adjustable speed strobe effect;
Prism: 8-facets rotation prism;
Focus: Electronic linear focus;
Beam angle: 1° To 3.8° ;
Control mode: DMX512 signal control mode with 3 pin interfaces, Master-slave mode, Auto mode;
Channel: 13CH;
Ballast: Electronics ballast and AC/DC power supply. Power factor is more than 99%, THD<20%.
Head movement: Horizontal: 540° , 8bit/16bit precision scanning with auto position correction;
Vertical: 270° , 8bit/16bit precision scanning with auto position correction;
Features: Color temperature correction, 0-100% Linear Color temperature reducing system, Color Temperature Linear adjust from 2700-7200K;
Environment temperature: -15° C ~45° C;
IP rating: IP20;
Shell material: Aluminum alloy composites plastic
Package size: 335*225*410mm
Gross weight: 15KG

Production

Channel	function
Ch 1	Pan
Ch 2	Tilt
Ch 3	Pan fine
Ch 4	Tilt fine
Ch 5	Pan/Tilt speed
Ch 6	Dimmer
Ch 7	Strobe
Ch 8	Atomization
Ch 9	Color
Ch10	Color fine
Ch 11	Gobo
Ch 12	Gobo shake
Ch 13	Prism
Ch 14	Prism rotate
Ch 15	Prism amplification
Ch 16	Focus
Ch 17	Lamp on/off
Ch 18	Reset
