Home > Products > DMX Lighting Controller > PC MA2 full-size

PC MA2 full-size

Product Details

Place of Origin: China

Brand Name: Union Bright

Certification: CCC, CE, ROHS

Model Number: PC-MA2-8

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: 10 $/pcs

Packaging Details: Carton

Delivery Time: 5-8 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1000pcs/Month

Get Best Price
Highlight:

DMX lighting controller full-size

,

PC MA2 DMX controller

,

full-size lighting controller with warranty

Model:
PC MA2 Full-size
Voltage:
AC 110V/220V. 60HZ/50HZ
Size:
140*75*32CM
G.W:
93kg
Model:
PC MA2 Full-size
Voltage:
AC 110V/220V. 60HZ/50HZ
Size:
140*75*32CM
G.W:
93kg
PC MA2 full-size

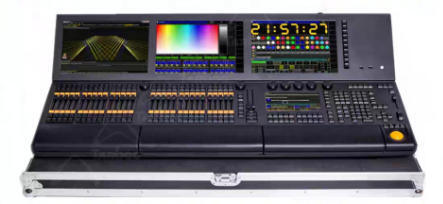

PC MA2 Full-Size Lighting Console
Professional lighting control console with integrated Windows operating system, comprehensive I/O interfaces, and built-in UPS power supply for reliable performance in demanding environments.
Core System Specifications
Operating System Windows
Processor Intel Core i5-6600 CPU
Memory 8GB RAM
Storage SSD Kingston 120GB
Display Configuration
  • 1 x 9-inch touch screen with X1-X20 User1/User2 button LED synchronization
  • 3 x 15.4-inch electric raised widescreen touch displays
  • Display window fixed - mouse cannot be dragged
Audio & Connectivity
  • Independent HIFI-level sound card with isolation technology
  • Eliminates AC sound interference and integrated sound card quality issues
  • 4 x Gigabit Ethernet ports
  • 1 x 18W fast charging USB port for mobile devices
Control Interfaces & Protocol Support
  • 6 x DMX-512 output interfaces
  • 1 x DMX-512 input interface
  • Art-Net network extension to 256 domains (no NPU required)
  • Expandable to 256 DMX output ports via Jingda
  • 1 x LTC time code input interface
  • 1 x MIDI time code input interface
  • SB interface, audio interface, network interface
  • 2 x work light interfaces
Physical Controls
  • High-sensitivity trackball for precise control
  • Built-in keyboard drawer
  • 1 x main control dimming wheel
  • 4 x attribute encoding wheels
  • 1 x main control push rod
  • 2 x AB push rods
  • 30 x program playback push rods
  • 80 x program storage function keys
  • Physical buttons for window closure and lighting software operation
Power & Physical Specifications
Input Voltage 110V~220V 50~60Hz
Power Supply Built-in high-power UPS uninterruptible power supply
Gross Weight 93KG
Package Dimensions 140 × 75 × 32CM
