Highlight:
                                                                                                                                                                                DMX lighting controller MA2, professional DMX controller MA2, MA2 lighting control system


Model:	MA2	Voltage:	AC 110V/220V. 60HZ/50HZ
Size:	1023382CM	G.W:	72kg

Model:	MA2
Voltage:	AC 110V/220V. 60HZ/50HZ
Size:	1023382CM
G.W:	72kg

MA2

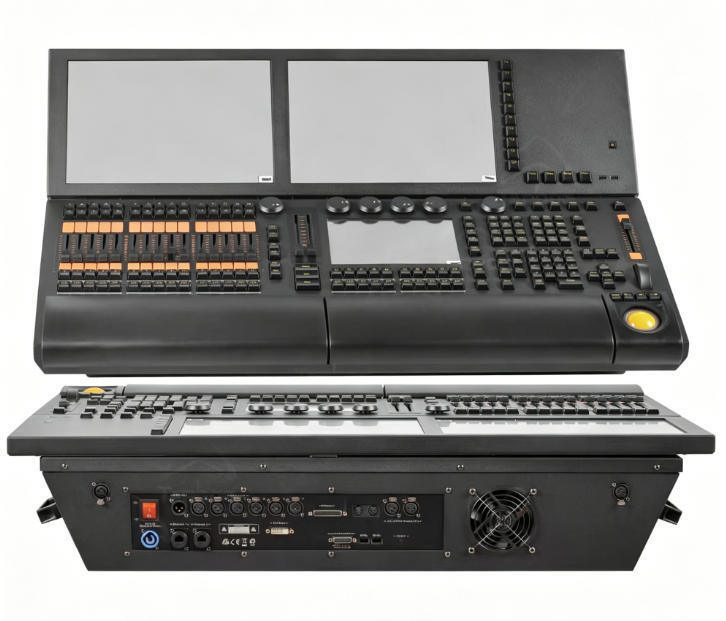

MA2 Professional Lighting Console

A high-performance lighting control console featuring professional Linux operating system and comprehensive control capabilities for industrial and entertainment lighting applications.

Display System

2 electric lifting 15.4-inch industrial full view touch screens
1 additional 9-inch industrial full view touch screen
2 DVI interfaces for external display expansion

Hardware Specifications

Motherboard	ASUS motherboard with powerful i5 CPU
Memory & Storage	46GB memory with built-in solid-state drive
Graphics	2 Geforce graphics cards
Power Supply	Wide voltage industrial power supply (100V-240V 50/60Hz)
Backup Power	Built-in high-power UPS uninterruptible power supply

Control Interfaces

15 electric playback push rods with sensing function (60mm)
50 program execution buttons
1 main control push rod
2 A/B field manual push rods (100mm)
6 imported industrial grade wear-resistant encoders with push function
1 dimming wheel
1 controllable XY axis high-precision original imported trackball
Built-in push-pull professional yellow backlit mechanical keyboard
Yellow backlit mechanical buttons with adjustable brightness

DMX & Networking

DMX Output	6 DMX output ports
DMX Input	1 composite DMX input port (configurable as output)
Channel Capacity	Supports up to 65,536 channels when connected to NPU
Network Protocols	MA NET, ARTNET, ETCNET2, PATHPORT, SCAN, SHOWNET, KINET
Ethernet Ports	2 Gigabit Ethernet ports
Expansion	External Fader wing support (adds 4 DMX outputs, 15 push rods, 30 program buttons)

Connectivity & I/O

5 USB ports plus 1 backup USB port
2 work light interfaces
MIDI input/output interface
LTC/SMPTE time code support
Audio input/output and microphone input interface
Built-in expansion capability
RDM function support

Physical Specifications

Gross Weight	72kg
Package Dimensions	102 × 33 × 82cm

Professional Grade: Designed for demanding industrial and entertainment lighting environments with robust construction and comprehensive control capabilities.
