Highlight:
                                                                                                                                                                                DMX lighting controller MA2, full-size DMX controller, professional lighting control MA2


Model:	MA2 Full-size	Voltage:	AC 110V/220V. 60HZ/50HZ
Size:	1407532CM	G.W:	93kg

Model:	MA2 Full-size
Voltage:	AC 110V/220V. 60HZ/50HZ
Size:	1407532CM
G.W:	93kg

MA2 full-size

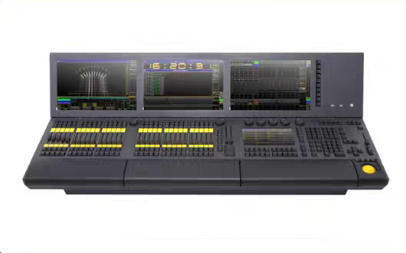

MA2 Full-Size Professional Lighting Console

Advanced professional lighting control console featuring Linux operating system with comprehensive connectivity and industrial-grade construction.

Display System

3 electric lifting 15.4-inch industrial full view touch screens
1 additional 9-inch industrial full view touch screen
Expandable to two external display screens via 2 DV interfaces

Processing Power

ASUS motherboard with powerful Intel i5 CPU
4GB system memory
Built-in solid-state drive for fast performance
Dual Geforce graphics cards

Control Interface

30 electric playback push rods with induction function (60mm)
80 program execution buttons
1 main control push rod
2 A/B field manual push rods (100mm)
7 imported industrial-grade durable encoders with push function
1 dimming wheel
1 controllable XY axis high-precision original imported trackball
Professional yellow backlit mechanical keyboard (adjustable brightness)
Yellow backlit mechanical buttons (adjustable brightness)

Connectivity & Protocols

6 DMX output ports
1 composite DMX input port (configurable as output)
Supports up to 65,536 channels when connected to NPU
2 Gigabit Ethernet ports supporting MA NET, ARTNET, ETCNET2, PATHPORT, SCAN, SHOWNET, KINET1 signals
5 USB ports plus 1 backup USB port
MIDI input/output interface
LTC/SMPTE time code interface
Audio input/output and microphone input interface
2 work light interfaces
RDM function support
