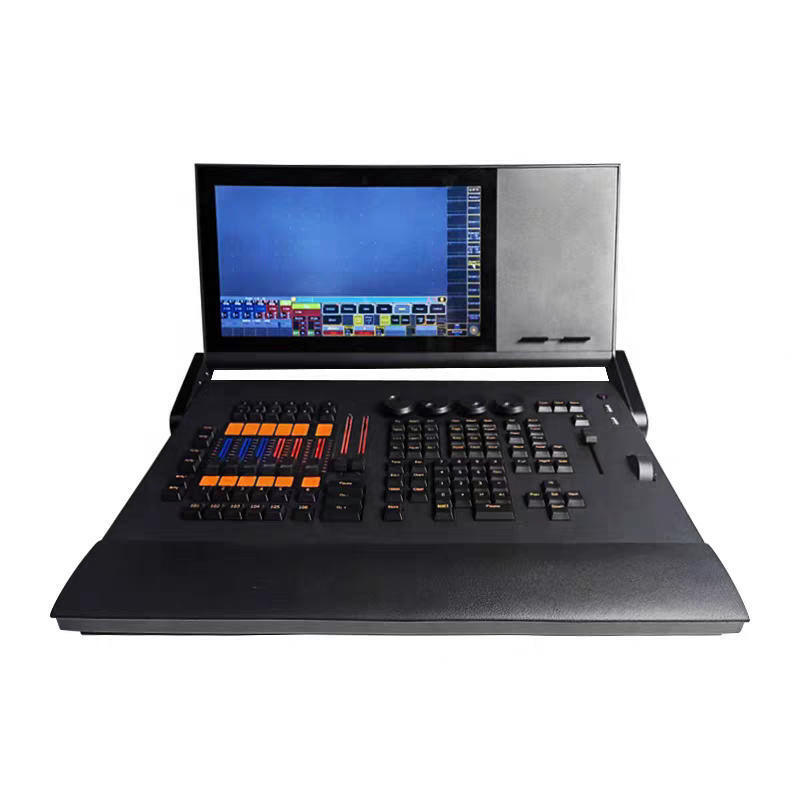

Single screen system

Name: Single screen system
Brand: Guangzhou Union Bright Lighting Co., Ltd.
SKU: Single screen system
Price: 10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Union Bright

Certification: CCC, CE, ROHS

Model Number: Single screen system

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: 10 $/pcs

Packaging Details: Carton

Delivery Time: 5-8 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1000pcs/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                single screen DMX controller, DMX lighting control system, compact DMX controller screen


Model:	Single Screen System	Voltage:	AC 110V/220V. 60HZ/50HZ
Size:	735129cm	G.W:	30KG

Model:	Single Screen System
Voltage:	AC 110V/220V. 60HZ/50HZ
Size:	735129cm
G.W:	30KG

Single screen system

Single Screen System Overview

Professional lighting control console featuring advanced parameter management and comprehensive connectivity options for stage and event production environments.

Key Specifications

Parameter Management

MA3 mode: 8,192 parameters
MA2 mode: 4,096 parameters

Display Configuration

Internal foldable display with multi-point touch screen
Supports one external multi-touch screen connection

Control Interface

29 rotating RGB backlight encoders
5 dual encoders
10 RGB backlit electric 60mm thrusters
2 100mm backlit electric A/B thrusters
Separate backlight and dimmable mute button

Programming Features

40 individual plays
16 assignable X keys

Connectivity & Interfaces

DMX Interfaces	6 DMX outputs, 1 DMX input
Network Connectivity	3 etherCON interfaces
USB Ports	5 USB interfaces
DMX512-A Connections	6 outputs (5-pin XLR female), 1 input (5-pin XLR male)
MIDI Connectivity	1 MIDI input (5-pin DIN female), 1 MIDI output (5-pin DIN female)
Additional Interfaces	Linear time code (3-pin XLR female), Audio input (3-pin XLR female), LED desk lamp

This single screen system provides comprehensive lighting control capabilities with extensive connectivity options, making it ideal for professional stage productions, concerts, and large-scale events requiring precise parameter management and flexible control interfaces.
