Highlight:
                                                                                                                                                                                DMX lighting controller extender, network extender for DMX, DMX signal booster extender


Model:	Network Extender	Voltage:	AC 110V/220V. 60HZ/50HZ
Size:	48.213.64.4CM	G.W:	1.4KG

Model:	Network Extender
Voltage:	AC 110V/220V. 60HZ/50HZ
Size:	48.213.64.4CM
G.W:	1.4KG

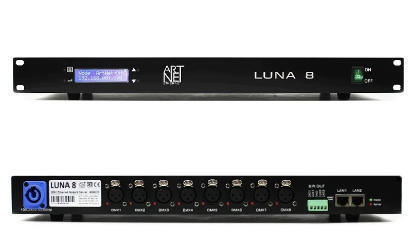

Network extender

Network Extender

This professional network extender offers versatile DMX signal distribution with advanced networking capabilities for lighting control systems.

Operating Modes

Configurable as server mode (DMX input) or node mode (DMX output) to suit various installation requirements.

Technical Specifications

4096 channels across 8 DMX lines
DMX512/1990 standard compliance with 44Hz refresh rate
32-bit ARM M4 processor with built-in high-speed network chip
10/100M adaptive network switch with 2 cascadable ports
Customizable IP, subnet mask, port order, and domain settings
Optoelectronic isolation drive signals with built-in TVS protection
LCD display panel for direct parameter modification

Software Compatibility

Supports Art-Net compatible software (WYSIWYG, EasyView 3D, Lighting Studio, Arkaos, Resolute)
Official website software for SPI point light source signal output
Compatible with WS2801, WS2811, 28126903, 16703 signal formats
Supports Maisi True Love Sound and Light Synchronization Software
MADRIX Software compatible
Functions as physical console extender for MA and Tiger systems

Control Capabilities

Fast programming and music synchronization via MIDI signals. Computer software operation independent of DMX with intuitive lighting fixture control.

Point Light Source Support

Single unit supports 2720 RGB point light sources (4 outputs × 680 points per channel) with configurable port numbering.

Physical Specifications

DMX Signal Output Connector	XLR-D3Fx8
Power Supply	Mingwei high stability power supply
Chassis	All aluminum, 1U size
Net Weight	1.4kg
Gross Weight	2.6kg (including power cord and 8 card adapters)
Product Dimensions	48.2 × 13.6 × 4.4 cm
Packaging Dimensions	56 × 21 × 11 cm
