Highlight:
                                                                                                                                                                                                                DMX lighting controller notebook, MA lighting control notebook, DMX controller with warranty


Model:	MA Notebook	Voltage:	AC 110V/220V. 60HZ/50HZ
Size:	5923.546 Cm /pcs	G.W:	5.5KG
Ch:	DMX 1536CH

Model:	MA Notebook
Voltage:	AC 110V/220V. 60HZ/50HZ
Size:	5923.546 Cm /pcs
G.W:	5.5KG
Ch:	DMX 1536CH

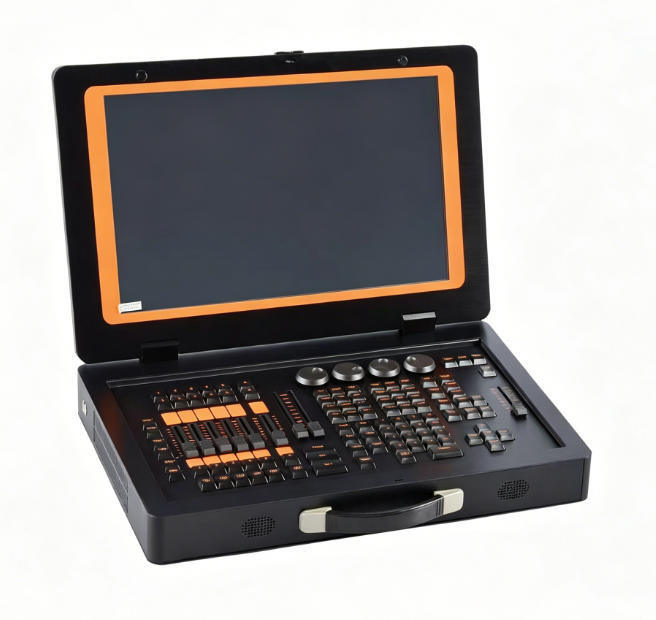

MA notebook

MA Notebook Professional Control Console

Premium Manufacturing & Construction

Whole alloy aluminum plate CNC precision carving process combined with high-precision laser sheet metal cutting technology ensures exceptional durability and precision.

Advanced Surface Treatments

Anodized exquisite surface treatment for superior corrosion resistance
Professional mechanical keys with wire drawing technology
Customized button caps with multi-layer composite oil technology
Super strong wear resistance and anti-light leakage properties

Precision Control Components

Imported optical encoder from the United States for smooth operation and high-precision positioning
CNC high-precision machining with anodizing technology
Customized encoder rights for alloy aluminum damper
Screen angle adjustment support structure

Control Configuration

Encoding Wheels	4 attribute encoding wheels with integrated button functions
Push Rods	1 main control push rod (60mm manual), 2 AB push rods (100mm manual), 6 program replay push rods (60mm manual)
Function Keys	12 program storage function keys, 6 execution keys, 6 page buttons
Command Area	Full specification command key area

Interface Connectivity

USB Interfaces	4 USB Type A interfaces, 1 backup USB Type B input interface
Audio Interfaces	1 MIC audio input interface, 1 stereo output interface
DMX Interfaces	2 DMX-512 output interfaces, 1 DMX-512 input interface with composite output function
Network & MIDI	1 thousand network interface, 1 MIDI input interface, 1 MIDI output interface
LTC Interface	1 LTC input interface

Display & Processing

HDMI high-definition display protocol with 17.3-inch high-resolution LCD screen
Taiwan touch screen and touchpad for intuitive control
Independent motherboard with i5 CPU, 128GB 8-state hard drive, 4GB memory

Quality Assurance & Testing

Core component PCB full board immersion gold process
Industrial grade accessories with strict material selection
Fine assembly process with 24-hour uninterrupted aging detection
Simulated vibration test with 24-hour uninterrupted multi-frequency vibration inspection

Physical Specifications
