Anti - Interference Rack Flight Case , Network Digital Dimmer Pack 12CH X 4000W

China Anti - Interference Rack Flight Case , Network Digital Dimmer Pack 12CH X 4000W supplier

Large Image :  Anti - Interference Rack Flight Case , Network Digital Dimmer Pack 12CH X 4000W

Product Details:

Place of Origin: Guangzhou China
Brand Name: SANFEI
Certification: CE & RoHS
Model Number: SF-K10

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negociation
Packaging Details: Carton package or Flightcase
Delivery Time: 4-8 days
Payment Terms: T/T, Western Union , Paypal
Supply Ability: 300pcs per month
Detailed Product Description
Power Supply: 220V~240V, 50HZ/60HZ Control Signal: DMX 512
Lighting Range: 0-100% Size: 482*490*135 (mm)
Weight: 23.8 Kg Channel: 12 CH * 4000W

12CH * 4000W Network Digital Dimmer Pack / Controller Box / Digital Dimmer Box


Specification:

4KW/channel for 12 channels
LCD display
Intelligent control panel, most convenient humanistic operation-n interface
Dimmers can be configured to any DMX dimmer.
Field lighting and beam-focusing: 6 channel digital lighting (the one whose proportion to the brightness value of DMX signal is bigger takes precedence)
Sets the brightness values of any dimmer freely, centralized control which can start / close self-lighting conveniently.
Lighting curve selecting:
Lighting range: 0-100%.
Fan automatic switching:
Technical Parameters:
Power supply: 220V~240V, 50HZ/60HZ
Control signal: DMX-512
Size: 482*490*135 (mm)
Weight: 23.8 kg



Product Description:
1. Silicon case silicon chip is the core of the device materials imported from Germany, stable and reliable.
2. A good heat sink and forced air cooling system and intelligent combination of environmental control.
3. Highly effective anti-interference ability choke strong anti-interference, noise, current rise time of 220us-450us.
4. Signal access: Digital dual DMX-512 (1990) input: DMX A and DMX B.
Dual network DMX input: NetDMX A and NetDMX B.
5. Dynamic warm-up and protection of the fixed two lamps warm way.
6. Partakers of the silicon box dimming control and centralized control functions. Has 6 points and 6 control of centralized control.
7. Dimming curve: 10. Dimming range 1% -100%.
8. Three-phase voltage instructions and automatically track the trigger compensation, the output voltage of a good consistency;
9. Double protection overload and short circuit air switch high breaking



Product features:
1) This dimmer pack is a 12CH digital dimmer pack, with high speed CPU memory do the mathematic operation.
2) Every channel has circuit breaker. Against overloading. LCD display
3) It use high efficiency anti-jamming inductance the raising of time is 220-350
4) The capacity module adopt USA original importation, USE controllable silicon CHIPS. Make up 65A to controllable silicon part, the ability of overloading is strong, can bear 100 time short circuit
5) When it is used as a DMX pack, it can be controlled by 1-12 CH. Channel address can be set between in 001-512
6) 3 pin male XLR socket for DMX input, 15PIN D socket for analog DC 0-10V input
7) 1-12 built-in programs. Speed preset.
8) Analog input. This product can be controlled by 12CH DC 0-10V signal.
9) Every channel can be operated separately and has linear dimming from 0-100%.
10) Many functions: Preheat, Power failure memory, phase correction, DMX signal parallel, stand alone.
11) Rating current: 10A/CH, 120A totally
12) Single phase input AC 220V/50~60Hz; Three phase input AC 220V/50~60Hz.



FAQ:


Q: Are we a factory or Trading company?
A: We are a facory.

Q:Do you offer a sample?
A:Yes, we do. The samples cost will be charged firstly but it will be refund in your
mass order.

Q: What is the delivery time?
A: Usually : Sample order ---in about 3-15days.
20" container----In about 20-30days
40" container----in about 25-45days

Q: How can I order?
A: After the quotation confirmed , ther proforma invoice will be made for you to confirm and make the deposit.

Q:What kind of services do you offer?
A:We supply ODM, OEM service and also welcome you become one of our products agent
below "bluesea" brand.

Q:What is the payment terms?
A:TT, Western Union or Paypal( 30% -50% deposit ,balance before shipping )

Q: How can I inspect the goods?
A: Ask your inspection agent to check or we give you a test report by our QC with photos.

Q: What is your after-service?
A: Usually 1 year warranty, during this period, we will provide you spare parts for free.

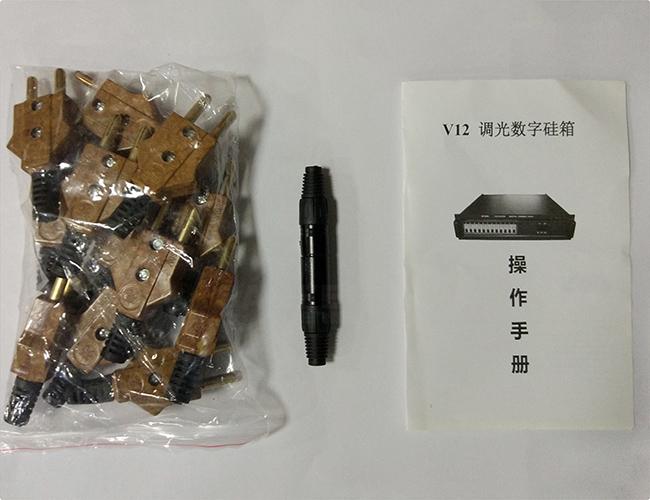

Photos:

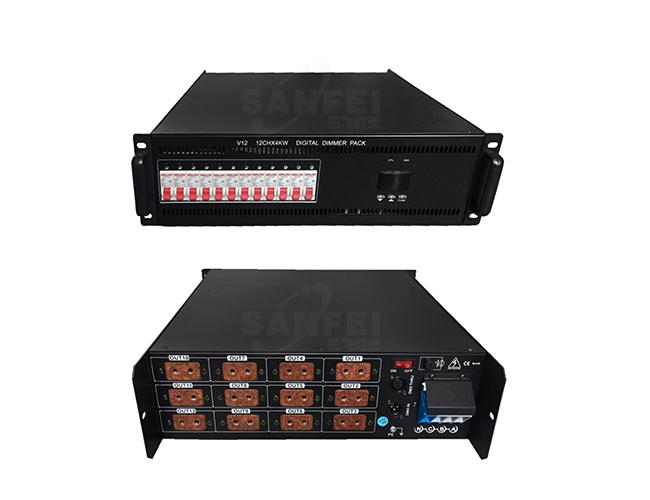

Anti - Interference Rack Flight Case , Network Digital Dimmer Pack 12CH X 4000W
Anti - Interference Rack Flight Case , Network Digital Dimmer Pack 12CH X 4000W
Anti - Interference Rack Flight Case , Network Digital Dimmer Pack 12CH X 4000W
